0~255 Adjustable Vision Measuring Machine LED Parallel Contour Illumination
This new product is a non-contact vision measurement instrument CNC, is composed of a high resolution CCD color camera, zoom lens, color display, video cross line generator, precision optical ruler, multifunctional data processor, high precision mechanical structure of the 2D data measurement software with high precision worktable, high efficiency photoelectric measuring instruments; measurement based on 2D and 3D measurement.
It can also be widely used in precision in different kinds of industries, such as electronic components, precision molds, precision tool spring, screw machining, plastic, rubber, oil seal valve, camera parts, bicycle parts, auto parts, conductive rubber, PCB processing etc. all kinds of precision processing, machinery, electronics, instrumentation, light industry, plastic industry, universities, research departments and metrology measurement room, one of the measuring and testing laboratory equipment and production workshop indispensable.

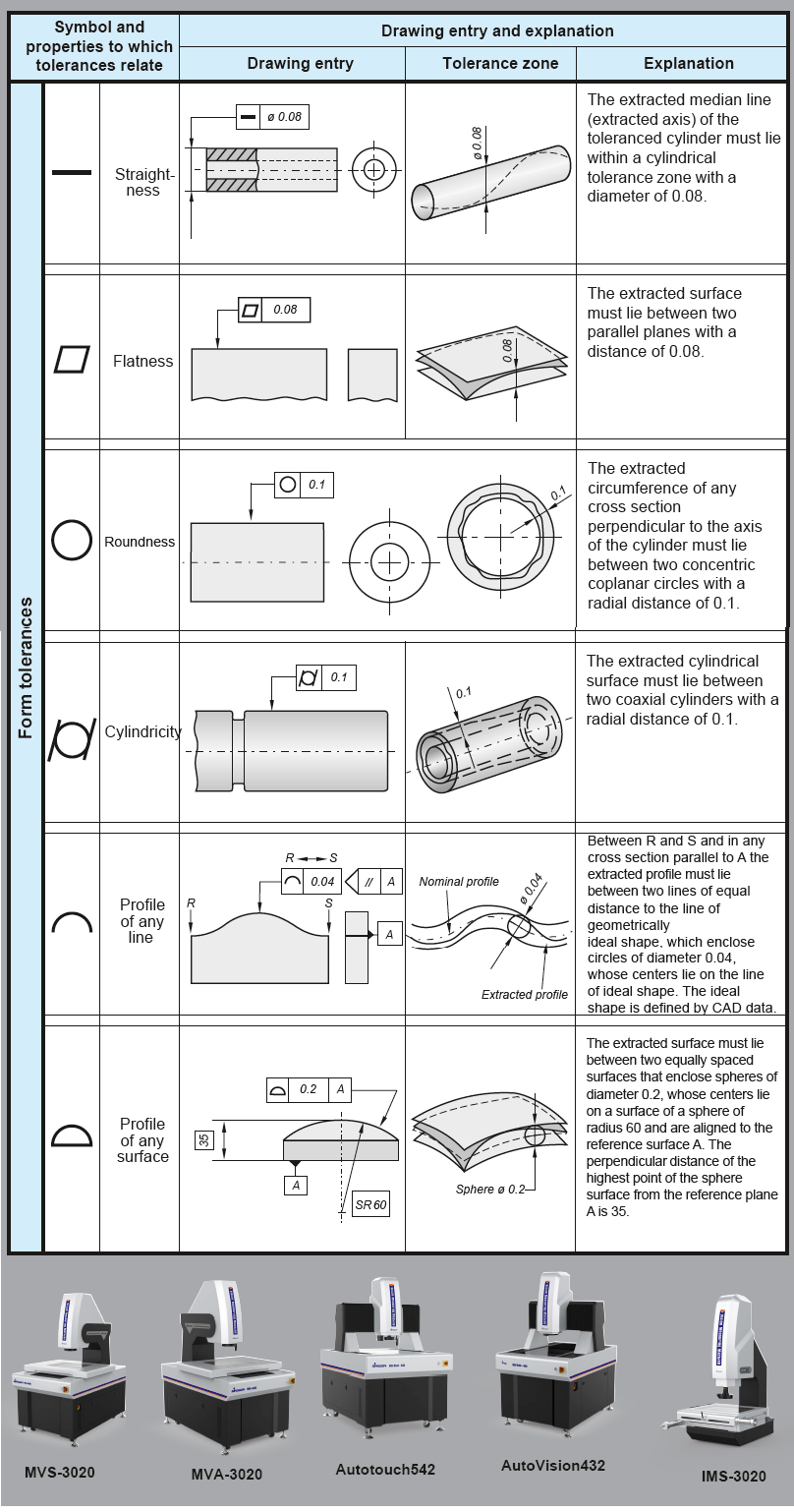

Specification:
| Product Name | 2.5D Fully Auto Vision Measuring Machine |
| Model | AutoVision432 | AutoVision542 | AutoVision652 |
| Code# | 520-121 | 520-131 | 520-141 |
| X/Y-axis Travel | 400x300mm | 500x400mm | 600x500mm |
| Z-Axis Travel | 200mm |
| X/Y/Z 3-axis Linear Scale | Imported Open Linear Scale, resolution:0.0005mm |
| Guidance Mode | Imported H grade Linear Guide,Double-Track Double Slider Guide |
| Operation Mode | Joystick controller, Mouse operation, automatic detection program |
| Measurement Accuracy* | XY Axis:≤2.5+L/200(um) |
| Z Axis:≤5+L/200(um) |
| Repeatability | 4um |
| Video System** | 1/2" color CCD camera |
| 6.5X Automatic Zoom Lens |
| Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor) |
| FOV(mm) | Lens Magnification | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x |
| 1/2"CCD | 11.4x9.14x6.6 | 8x6.4x4.8 | 4x3.2x2.4 | 2.67x2.13x1.6 | 2x1.6x1.2 | 1.78x1.42x1.07 |
| Illumination | Contour | LED Parallel Contour Illumination |
| Surface | 5-ring 8-division 0~255 grade continue adjustable |
| Software System | iMeasuring 4.1 Fully Auto Measuring Software |
| Load Capacity | 30Kg | 30Kg | 30Kg |
| Working Environment | Temperature 20℃±2℃,Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz |
| Power | 220V/50Hz/10A |
| Dimension | 1060*820*1680mm | 1300*950*1680mm | 1600*1050*1680mm |
| Weight | 650Kg | 780Kg | 1380Kg |
